Main structure1.Modular design, made by SPCC, stable and strength. The main pillars combine with top and bottom frame fast that users can assemble by themselves easier to reduce freight cost.
-

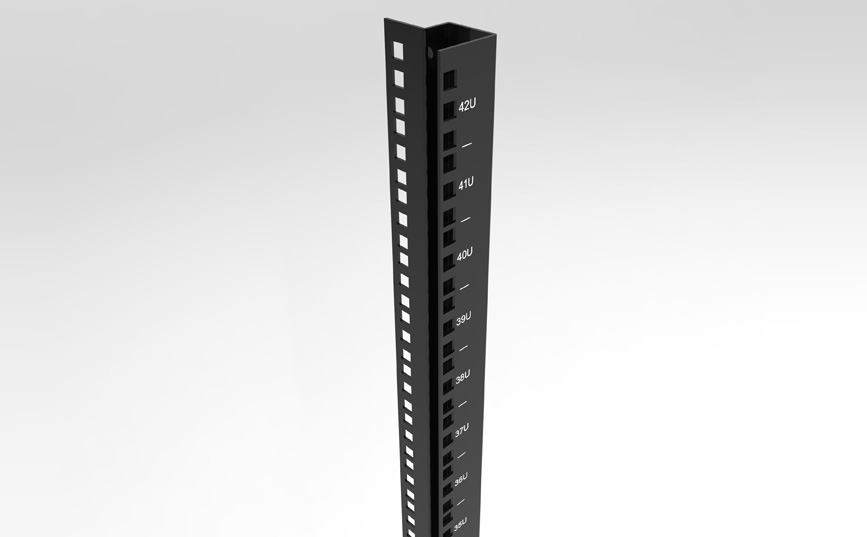

Mounting vertical rails2.Mounting post rails meet ANSI/EIA RS-310-D standard that can fit different 19”equipments, ex: COMPAQ, SUN, IBM, HP, ACER…etc.
-
Top cover3.One-piece cover with two fans (4 fans type for oution) to do dust-proof and cool down.It’s convenient and fast for sticks main posts in lock, because top frame welds locational components together.
-
Bottom frame4.Convenient and fast for sticks main posts in lock, because bottom frame welds locational components together.
-
Main pillar5.Six bent steel posts to intensify the whole rack’s strength. Modular design that can combine and positionwith top & bottom frames fast, lock once completed.
-
Side panel6.The side panel can be easily assembled and removedwithout tools.
-

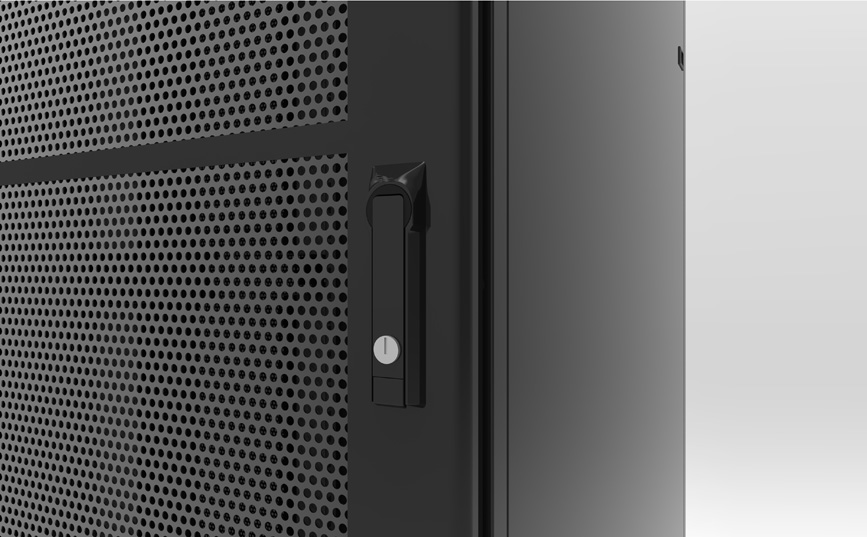

Honeycomb vent door7.It can reach 60% of ventilation rate.

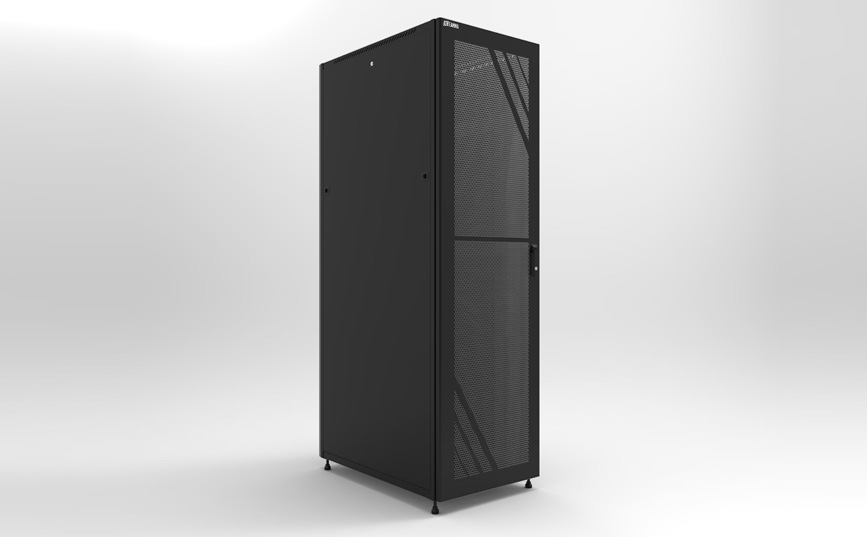

GR Network Rack
GR series are full iron cabinets, it can solve the problem of the cabinet can not be flat pack, you can choose the different standard rear door, this is your new choice.
※Photos and pictures are for reference only, please be based on the actual products.
| Model No. | U Unit |
DO Outward Depth (mm) |
HO Outward Height (mm) |
WO Outward Width (mm) |
|---|---|---|---|---|
| GR-2460 | 24U | 600 | 1220 | 600 |
| GR-2480 | 24U | 800 | 1220 | 600 |
| GR-24100 | 24U | 1000 | 1220 | 600 |
| GR-3760 | 37U | 600 | 1798 | 600 |
| GR-3780 | 37U | 800 | 1798 | 600 |
| GR-37100 | 37U | 1000 | 1798 | 600 |
| GR-4260 | 42U | 600 | 2020 | 600 |
| GR-4280 | 42U | 800 | 2020 | 600 |
| GR-42100 | 42U | 1000 | 2020 | 600 |
※ 1U = 1.75 inches = 44.45 mm (Standard unit: mm)
※ Available to customize
※ Available to customize
