Main structure1.Main body adopts one-piece structure design and it is made of SPCC materials.
-
Vertical rails2.Vertical rails that meet ANSI/EIA RS-310-C standard can fit different 19″ cabinet rack.
-

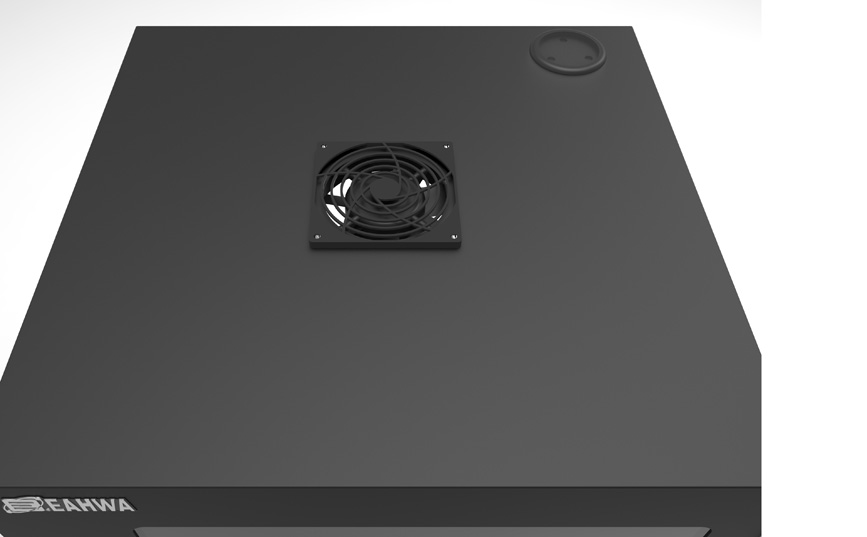

Top frame with fan3.Top frame with fan unit to make the ventilation of equipment.
-

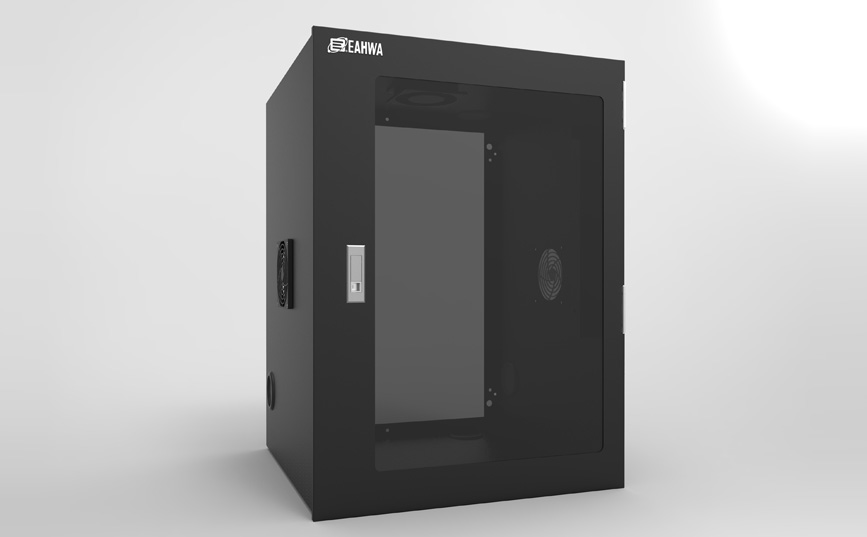

Front acrylic door4.Front acrylic door design with hidden handle lock. (Optional: vent door)
-

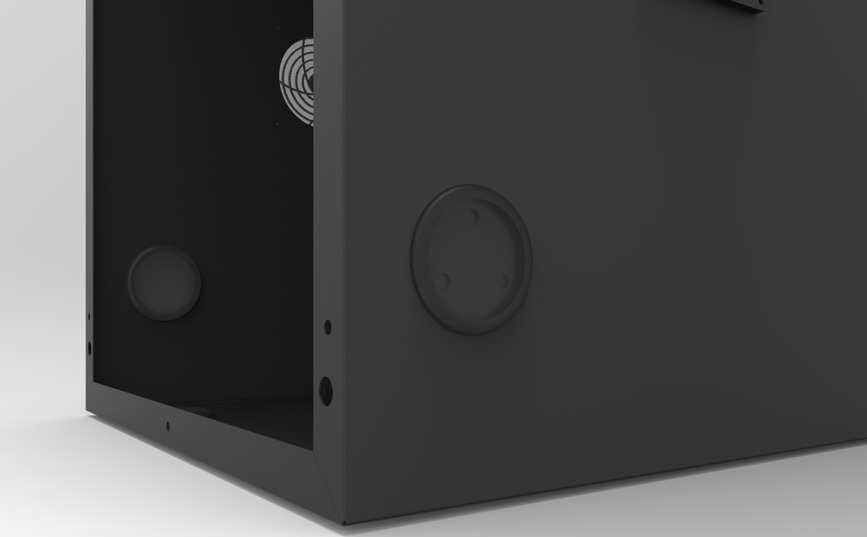

Cable holes5.The rack has made cable entry holes and has rubber cover to provide dust or insects destroy the equipment.
-
Air flow6.Install filter on left and right side to leach the air flow.
-
Power strip7.Power strip (6-way 110V) has passed UL certified.
-
Surface finishing8.Powder coating to fight against rust, oxidization. There is accordance with ROHS standard. The standard color: white.
-
Standardization9.Standardization for specification, prompt delivery, and special size can be custom-made according request.

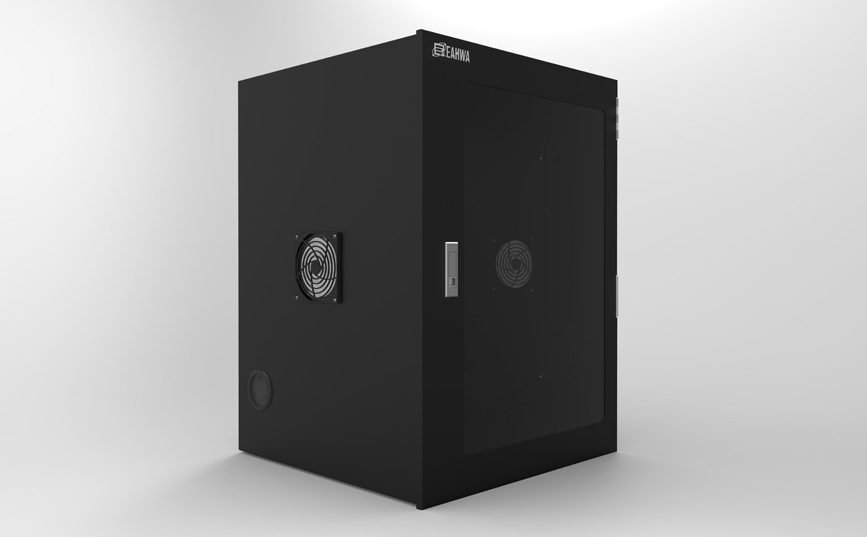

NWA Wall-Mount Rack
NWA Series meet ANSI/EIA RS 310-C standards can be used with the 19″ cabinet rack. Besides, NWA series have all certified by UL, CE and passed EIL-STD-167, MIL-STD-810F by organization certificate and ISO 9001.
※Photos and pictures are for reference only, please be based on the actual products.
| Model No. | U Unit |
HO Outside Height (mm) |
HI Inside Height (mm) |
DO Outside Depth (mm) |
|---|---|---|---|---|
| NWA-0650 | 6U | 302 | 267 | 500 |
| NWA-0850 | 8U | 391 | 356 | 500 |
| NWA-1050 | 10U | 480 | 445 | 500 |
| NWA-1250 | 12U | 569 | 534 | 500 |
| NWA-1550 | 15U | 702 | 667 | 500 |
※ Available to customize
※ 1U = 1.75 inches = 44.45 mm, standard unit = mm
