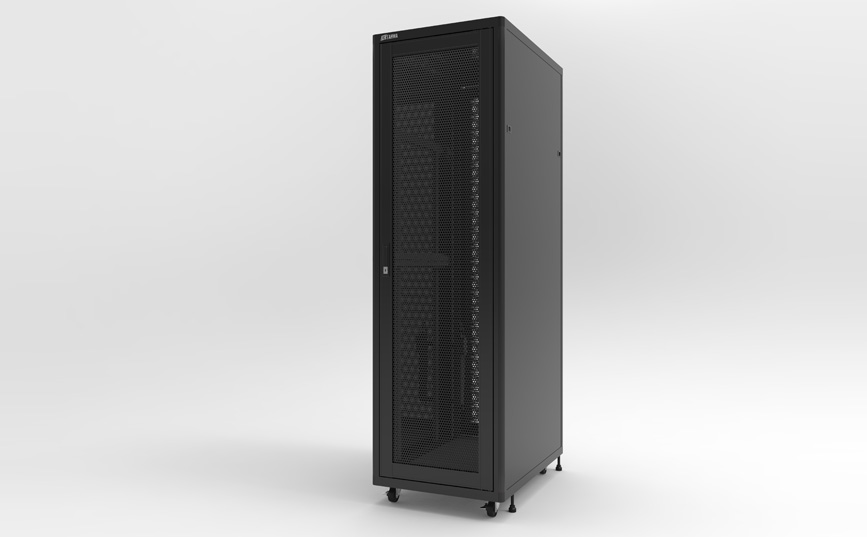

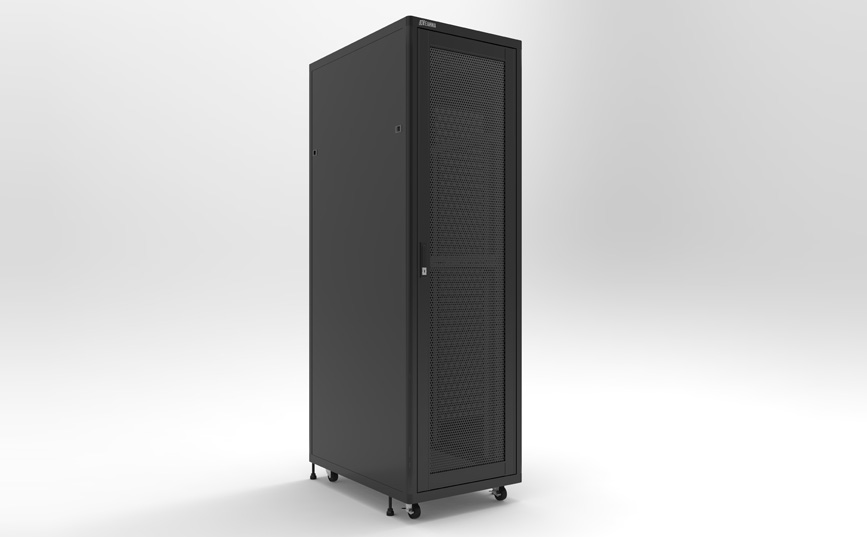

HD Network Enclosures

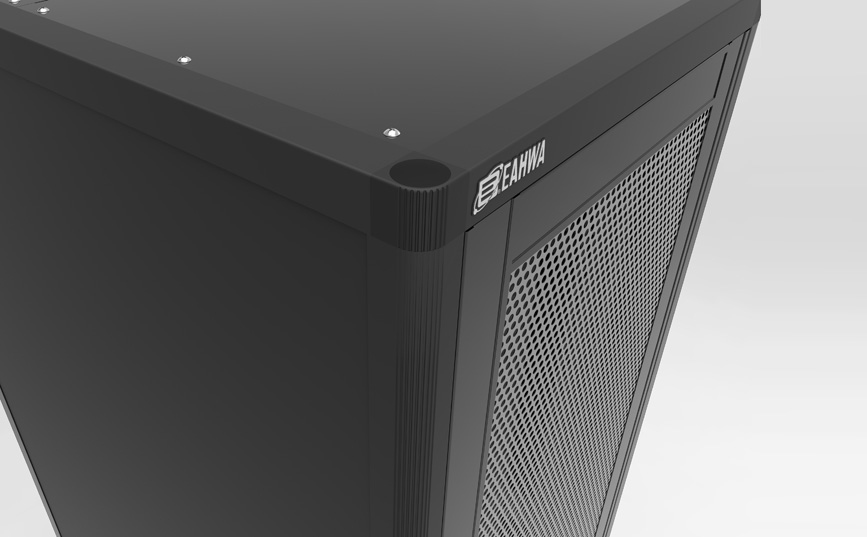

1.Its steady lightweight aluminum extrusion frame (material: AL6063T5) with 3 direction integrally molded corners casting (material: ADC12) to make frames more stable. In order to enhance shock resistance, it connects with three directions of XYZ axes by M5 HSCS and stainless steel framework, while exportation or a long distance delivery, there’s flat pack on service to easily build on site which may reduce the cost of transportation.

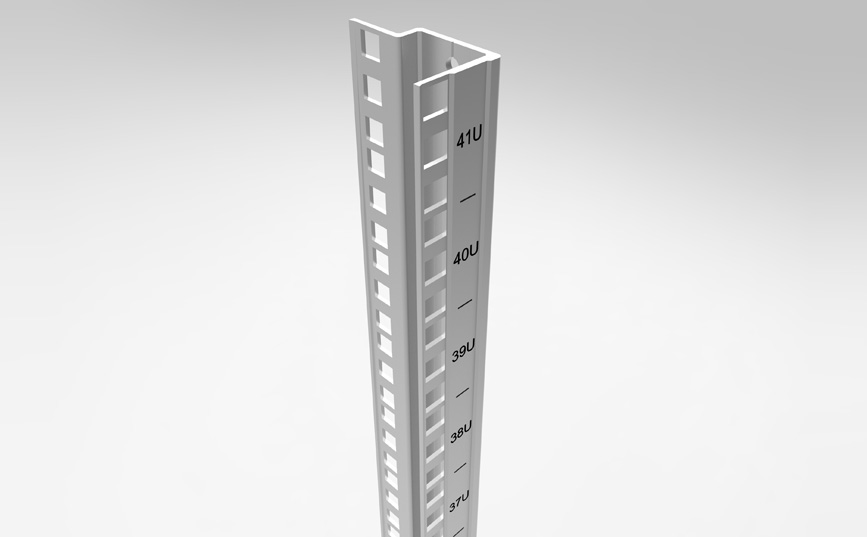

2.Mounting post rails that meet ANSI/EIA RS-310-C/D standard can fit different 19″ cabinet rack, ex: COMPAQ, SUN, IBM, HP, ACER…etc.

3.It is movable to fit different depth of equipment.

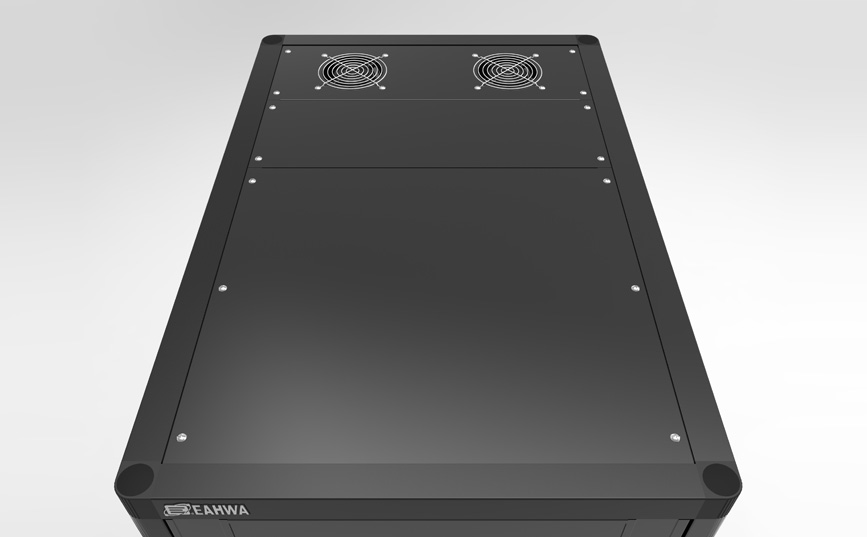

4. 2 ventilation fans and adjustable cover (3-pieces) to do dust-proof and cool down. (It’s adjustable as per customer demand)

5. 3-pieces adjustable Bottom plate on the bottom frame which plate can be removed by cable entry.

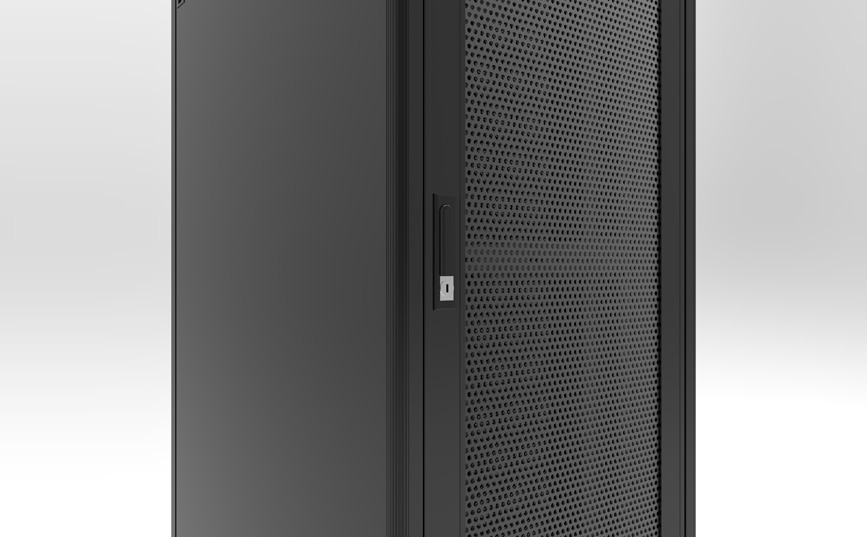

6.The doors are acrylic or standard vent doors for combined options including concealed locks and handles. It can be easily assembled and removed without tools. (There is also a honeycomb vent door for options that can reach 60% of heat removal.

7.The side panel can be easily assembled and removeable without tools.

8.The device can be set the 2.5″ caster and the 4″ leveling feet can poise the equipment.

9.It’s passed UL certified. ( it’s also available in customized specification)

10.Applying powder coating to prevent from get rust, oxidization and scuffing damage etc.This is accordance with ROHS standard. Our standard color is white and black. (custom color also available)
